Sizes Available : 1/4” O.D. To 3/8” O.D.
Maximumm tube thickness: 18G (1.24mm)

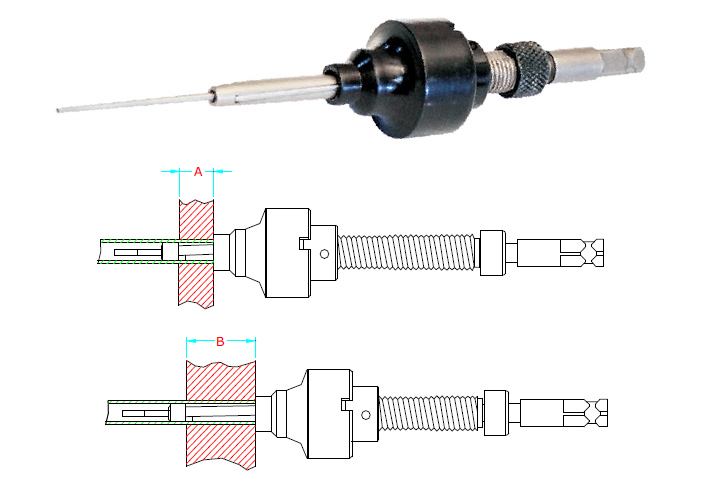

Tube Expander Fitted with Roller Length: 1”(25.4mm)
For Tube Inside Diameter
From (3.8mm) .152” to (8.4mm) .331”
FEATURES:
• Increased feed angle makes it the fastest operating tool on the market, ideal for high production
environment.
• Advantage: Captive mandrel - eliminates nut on mandrel tip which prevents scratching of tube I. D.
• Use: Oil coolers, Radiators, & other apparatus with small diameter tubes..
• Note: All ‘BAN’ series expanders come with 1/4” square mandrel drives. Round mandrel drives are
optional. |
