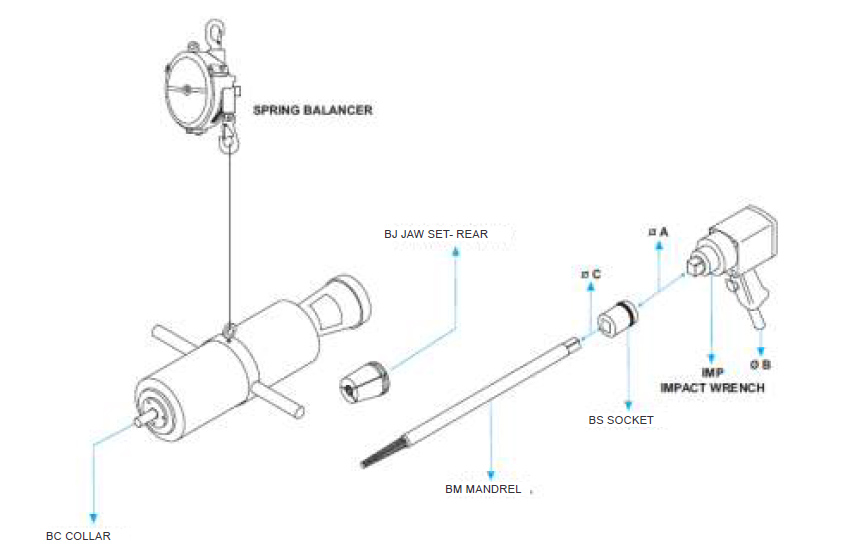

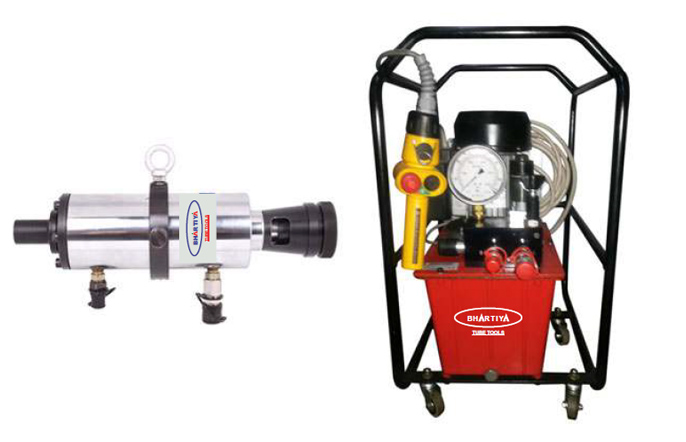

Master Tugger Hydraulic Tube Puller

Master Tugger Hydraulic Tube Puller



Features :
» Compact and lightweight gun and powerpack.
» Simple and robust operation.
» High pressure pump for pulling toughest jobs.
» Removes tube without damage.
» Low set up time / ease of operation
» Automatic switchover from low pressure to high pressure.
» Interchangeable pulling gun accessories compatible with existing systems on the market.
» Single man operation.



TUBE PULLING POWERPACK - SPECIFICATIONS

Model No.
Volts/ Phase
Power Hp
Oil Tank Capacity Ltrs.
Net Wt. Kgs. Dimension Mm Hyd.Hoses Size x Length Inch x mtrs.
STPP-300 230/1 3 10 68 510 x 370 x 680 1/4"x 5 Twin Jack Hose
STPP-300
(Pneumatic)
- - 10 65 510 x 370 x 680 1/4"x 5 Twin Jack Hose
Note: Max. Working Pressure 700 bar
All power pack supplied with 5 mtr. Long hydraulic hose




HYDRAULIC TUBE PULLING GUN - SPECIFICATIONS

Gun Model
Pulling Capacity Tons
Max. Tube O.D Thru Gun Inch
Stub Pulling Capacity Inch
Weight Free Pulling Speed (Meter/min) with STPP-300
Kgs. Lbs.
SHPG-15 15 1 1.1/2 18 40 3.3
SHPG-30 30 1.1/2 3 25 55 2.0
SHPG-45 45 3 4 51 112 1.3
