Flexible Shaft Machine (BFM Series)

Flexible Shaft Machine (BFM Series)



Flexible shaft machine is the most important machine in the set of boiler, evaporator, Vacuum Pan tube cleaning system. It is the India’s most experienced flexible drive machine maker for Sugar Mill tube cleaning system or Sugar Factory power tube cleaner and ice factory tube cleaning.



It is a 3 phase electric motor (2800 rpm) mounted on 3 wheel trolley fitted with a carrying trolley. Horse power of motor is selected depen-ding upon the length & size of shaft, and type of scaling. Push button starter is provided to control the motor. Each machine is fully wired, carefully tested & fitted with a 10 ft. Length (Or longer if required) PVC cable to main supply.

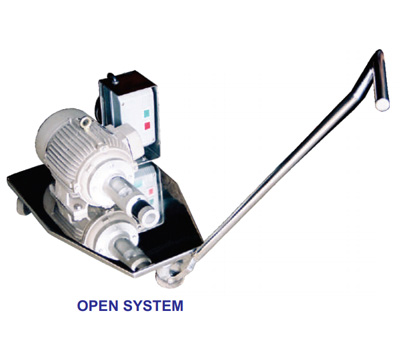

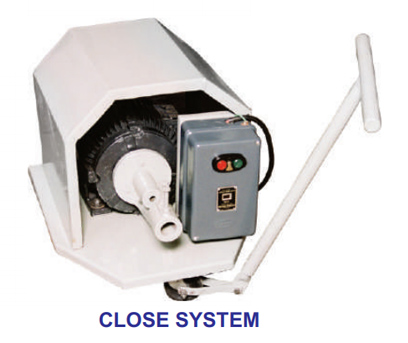

Motors are available in enclosed system as well as in open system (i.e. Without covering of above motor.

Please contact us if your electrical specification is different from below mentioned. Machine for alternate supply are also available.



Model No.
Motor Power
HP
kW
Electric Supply
Speed RPM
Tube I. D.
Mm.
Inch
BFM -30
3
2.238
440 V
3 Phase
50 C/S A/C
2800
28.0-50.80
1.1/8"-2.0"
BFM -50
5
3.73
2800
38.10-101.6
1.1/2"-4.0"
BFM -50M
5
3.73
2800. 1400, 910
38.10-101.6
1.1/2"-4.0"
BFM-50S 5 3.73 1400 38.10-101.7 1.1/2"-4.0"
BFM-50V 5 3.73 300-2800 38.10-101.8 1.1/2"-4.0"
