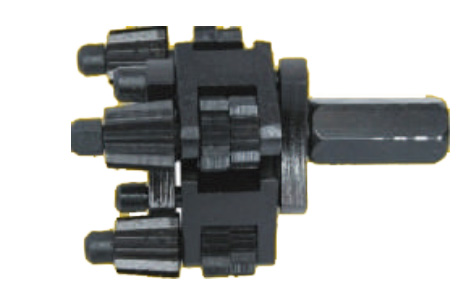

'SA' Series Type Tool Head Cutter
for Tubes / Pipes 2"-4" (51.0mm-101.6mm) I.D. These cutter Heads have 3 to 5 freely pivoted arms, activated centrifugally, which swing out to give access to any part of tube wall.
Model No. |
Tube I.D. |
Cone & Flat Cutter Set (9) Model No. |
Arms Model No. |
Universal Joint Model No. |
|
| Mm. | Inch | ||||
| SA-16 | 51.0 | 2 | SAFC-1 | SAA-1 | SAUJ-1 |
| SA-18 | 57.1 | 2.1/4 | SAFC-2 | SAA-2 | SAUJ-2 |
| SA-20 | 63.5 | 2.1/2 | SAFC-2 | SAA-2 | SAUJ-2 |
| SA-22 | 70.0 | 2.3/4 | SAFC-3 | SAA-2 | SAUJ-2 |
| SA-24 | 76.2 | 3 | SAFC-3 | SAA-2 | SAUJ-2 |
| SA-28 | 88.9 | 3.1/2 | SAFC-4 | SAA-2 | SAUJ-2 |
| SA-32 | 101.6 | 4 | SAFC-5 | SAA-3 | SAUJ-2 |
