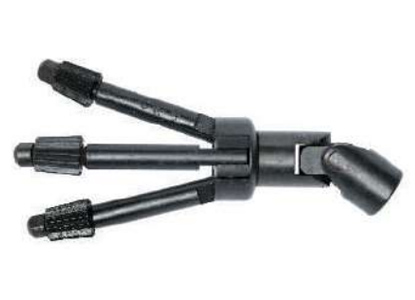

'YT' Series Tool Head Cutter
'YT' Series Tool Head has powerful performance for Pan or oil field pipe yard cleaning. This is also a part rattling tool heads accessories which is to be used with rattling motors. These are commonly known as WA type cutter, or rattling cutters.
Purpose : For fine cleaning of curved or bend tubes.
Description : It has pivoted arms and cutter head which contacts every part of tube due to centrifugal force.
Size : For tube I. D. From 32mm to 102mm.
Serial No. |
Tube I.D. |
Tool Head Model Nos. |
Cone Cutter Set of 3 rollers Model Nos. |
Spare Arms Model Nos. |
Universal Joint Model Nos. |
|
| Mm. | Inch | |||||
| 1 | 38.1 | 1.1/2 | YT-12 |
YTC-12 | YTA-12 | YTUJ-12 |
| 2 | 44.5 | 1.3/4 | YT-14 | YTC-14 | YTA-14 | YTUJ-14 |
| 3 | 51.4 | 2 | YT-16 | YTC-16 | YTA-16 | YTUJ-16 |
| 4 | 57.1 | 2.1/4 | YT-18 | YTC-18 | YTA-18 | YTUJ-18 |
| 5 | 63.5 | 2.1/2 | YT-20 | YTC-20 | YTA-20 | YTUJ-20 |
| 6 | 69.8 | 2.3/4 | YT-22 | YTC-22 | YTA-22 | YTUJ-22 |
| 7 | 76.2 | 3 | YT-24 | YTC-24 | YTA-24 | YTUJ-24 |
| 8 | 88.9 | 3.1/2 | YT-28 | YTC-28 | YTA-28 | YTUJ-28 |
| 9 | 101.6 | 4 | YT-30 | YTC-30 | YTA-30 | YTUJ-30 |
