» TECHNICAL SPECIFICATIONS OF SIPLBM-40

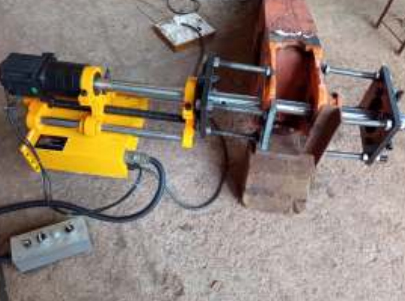

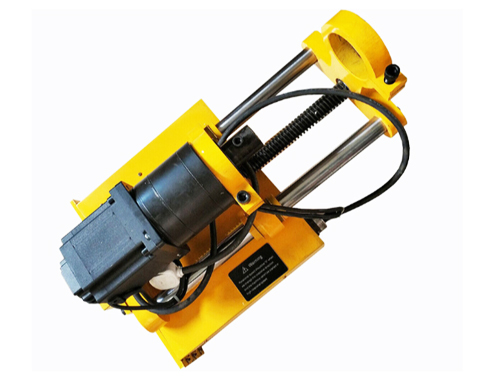

» MACHINE PICTURES ONLY FOR YOUR REFERENCE
OUR MACHINE ADVANTAGE COMPARED WITH SAME INDUSTRY :
» By adopting 220V DC motor with characteristics of Low speed of revolution an
high torque the machine can realize stable machining in superior performance.
» No vibration in axial travel and cutting process.
» Feeding and processing can realize unlimited speed control. Feeding process can
be set according to requests, and processing can automatically stop after
reaching the limit switches.
» Boring bar adopted high-strength alloy which with high hardness, high accuracy,
high tenacity, good abrasion resistance, etc.
» Within the effective travel, the tool rest can be fixed at any position of boring bar.
» The boring bar can be disassembled separately to make installation convenient.
» Electric motor controller is equipped with a dynamic delay brake program to avoid
vibration in shutdown.
» The control cabinet is installed below the main engine to be beneficial to safety
operation.
» The equipment also has extended functions on boring end face. Customers can
select the function according to processing demands.
SPECIFICATIONS :
No. |
ITEMS |
UNIT | SIPLBM-40 |
1 |
Boring Bar Diameter | mm | 40 |
| 2 | Length of Boring Bar | mm | 1500mm |
| 3 | Boring Spindle Speed | RPM | 0-125 Suggested 50rpm when using HSS Tool |
| 4 | Max Axial Travel | mm | 360 |
| 5 | Axial Feeding Speed | mm/r | 0-0.8 |
| 6 | Motor Power | KW | 1.5 |
| 7 | Boring Diameter | mm | Φ45-Φ180(Max 200) |
| 8 | The Maximum Boring Depth | mm | 2mm on one side(Φ45-180) |
| 1mm on one side (φ180-200) | |||
| 9 | Surface Roughness | - | Ra3.2 |
| 10 | Machining Tolerance | mm | Less than 0.1 |
| 11 | Voltage and Frequency | - | 220V, 50hz, Single Phase |
