Pneumatic Boiler Tube Cleaner

BOILERS PNEUMATIC TUBE CLEANER is used for Boiler or heat exchanger Tube Cleaning or descaling purpose. The most important advantage of Pneumatic Tube Cleaner is its Low Weight, High-Efficiency Air Motor therefore easy to handle during the cleaning operation. It is also useful in Bend & Curved Tubes of Boiler & Turbines. It is also called a TURBINE STYLE TUBE CLEANER.

These world-class & efficient Air motors are also used as Rattling tools for cleaning of pipes in Oil filed shipyard industries. Our Rattling motors and Rattling heads are being used in more than 50 nations successfully for boiler cleaning as well as pipe cleaning.

Powerful short design of Air Motor is ideal for negotiating short radius bends when cleaning curved tubes. Precision slip-fit motor construction means no special tool required for assembly and disassembly. Thrust plate motor packs plenty of power to operate all types of cleaning heads. Shown with forward swing arm type cleaner head and universal joint.

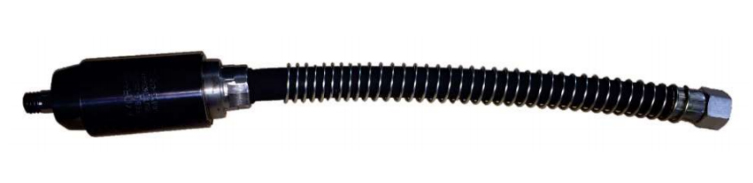

6300 SERIES AIR MOTOR
Thirst plate type motor specially designed for straight tubes motor parts slip-fit together for easy assembly without special tools. The motor operates at full power for high speed, heavy duty performance.

Sr. No.	Tube ID		Bend Tube	Straight Tubes
	MM	Inches	Model	Model
1	22.0-24.0	7/8-61/64	B6024	B6324
2	25.0-29.0	1-1/32	B6029	B6329
3	30.0-35.0	1.3/16-1.25/64	B6035	B6335
4	36.0-41.0	1.27/64-1.21/32	B6041	B6341
5	42.0-50.8	1.5/8-2	B6051	B6351
6	50.8-57.1	2-2.1/4	B6057	B6357
7	57.1-63.5	2.1/4-2.1/2	B6063	B6363
8	63.5-69.9	2.1/2-2.3/4	B6069	B6369
9	69.9-76.2	2.3/4-3	B6076	B6376
10	76.2-88.9	3.-3.1/2	B6088	B6388
11	88.9-101.6	3.1/2-4	B6101	B6401
12	101.6-127.0	4-5	B6127	B6427



FEATURES
» The safe way to remove tough deposits from curved or straight tubes.
» Standard models available for 19 to 140 mm 1.D. On request, BHARTIYA can supply heads for up to 500 mm I.D. Tubes.
» Recommended for all places where danger of explosion exits.
» Air-driven rotary motor 3000-6000 RPM under no load. No overheating Efficient. Very durable.
» Automatic cut-out with torque overload prevents tube wall damage.
» Self-cleaning heads. Air blast clears away loose scale; cools cutters heads.
» Versatile range of standard cutters.
» Air motor have a simple design with few moving parts, which provide trouble free operation with minimum of maintenance.

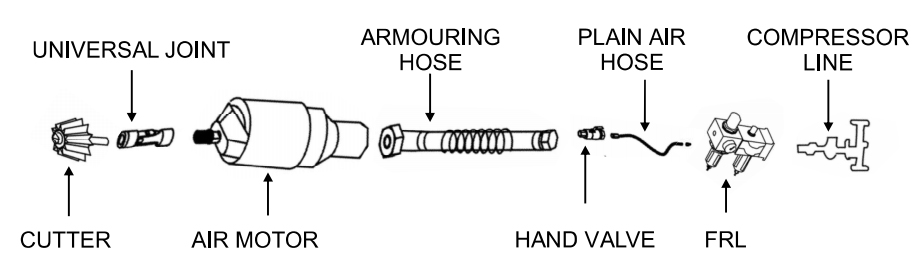

General Arrangement for Pneumatic Tube Cleaner System
