Rubber Tapered Tube Plugs

 Home / Products / Tube Removal Tools

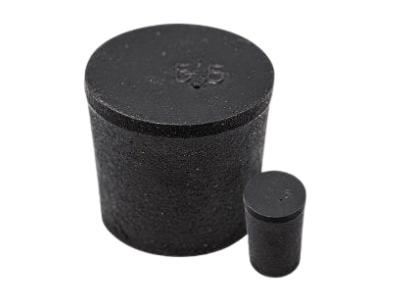

Rubber Tapered Tube Plugs


Rubber

Send enquiry for Boiler Tube ExpanderTube Cleaner

Bhartiya Industries is the leading Manufacturer & Exporter of various engineering goods such as Low-pressure rubber tapered tube plugs offer a cost-effective alternative to more costly tube plugs for temporary or low-pressure applications. These plugs, made of neoprene, are typically used for low-pressure isolation or vacuum testing in combination with our Vacuum Leak Detector.



Reusable Low-Pressure Rubber Tube Plugs for Isolation or Vacuum Testing Applications.

FEATURES:

» One size fits multiple port sizes.
» Made of resilient neoprene and is reusable.
» Soft rubber material conforms to provide a tight seal.
» In-stock items ship within 24 hours.




Tube O.D Gauge Model No. Dimension (in) + / -.005 Dimension (mm) + / -.005
"A" SMALL "B" LARGE "L" LENGTH "A" SMALL "B" LARGE "L" LENGTH
1/2 14-24 TP - 12 - R 0.313 0.500 0.875 7.950 12.700 22.225
5/8 13-24 TP - 15 - R 0.406 0.594 1.000 10.312 15.088 25.400
3/4 11-17 TP - 19 - R 0.500 0.656 12.700 16.662
3/4 14-24 TP - 19-1 - R 0.563 0.750 14.300 19.050
7/8 11-17 TP - 22 - R 0.625 0.781 15.875 19.837
7/8 15-24 TP - 25 - R 0.719 0.938 18.263 23.825
1 10-19
1 11-24 TP - 28- R 0.750 1.000 19.050 25.400
1-1/8 7-14
1-1/8 13-19 TP - 28-1 - R 0.906 1.063 23.012 27.000
1-1/8 16-24 TP - 31 - R 0.969 1.109 24.613 28.169
1-1/4 10-13
1-1/4 13-24 TP - 31-1 - R 1.031 1.250 26.187 .31.750
1-3/8 7-16 TP - 34 - 1 - R 1.063 1.344 27.000 34.138
1-3/8 14-24 TP - 34 - R 1.188 1.438 30.175 36.525
1-1/2 7-20 TP - 38 - 1 - R 1.125 1.500 28.575 38.100
1-1/2 14-24 TP - 41 - R 1.312 1.625 33.325 41.275
1-5/8 10-20
1-5/8 16-24 TP - 41 - 1 - R 1.406 1.688 35.712 42.875
1-3/4 10-20 TP - 44 - R 1.469 1.750 37.313 44.450
1-3/4 12-24 TP - 44 - 1 - R 1.500 1.813 38.100 46.050
2 7-15 TP - 50 - R 1.625 1.969 41.275 50.013
2 12-20 TP - 50 - 1 - R 1.750 2.078 44.450 52.781
2 18-24 TP - 57 - R 1.875 2.203 47.625 55.956
2-1/4 8-18
2-1/2 8-14 TP - 63 - 1 - R 2.000 2.469 50.800 62.713
2-1/2 12-18 TP - 63 - R 2.125 2.500 53.975 63.500
2-3/4 6-13 TP - 69 - R 2.281 2.688 57.937 68.275
2-3/4 12-18 TP - 69 - 1 - R 2.438 2.969 1.325 61.925 75.413 34.925
3 6-16
3 12-18 TP - 76 - R 3.000 3.500

1.500

 76.200 88.900 25.400
3-1/2 13-18 TP - 88 - R 3.425 4.000 1.500 82.550 101.600 38.100
4 7-18 TP - 101 - R 3.500 5.000 2.000 88.900 127.000 25.400
