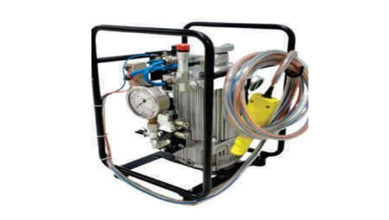

Working Pressure 700 bar
High Flow 3 - stage pump unit
Compact and Lightweight
» The Single valve block can be replaced by component FP-4,thereby
allowing 2 or 4 tools to be driven simultaneously
» Three stage with air drive
» Supporting continuous operation with steel frame
» 100mm diameter gauge ,aluminium oil tank with oil level indicator
» Variable pressure adjustment between 1000~10000 psi
» Designed for continuous operation
» Supplied with 5 mtr twin hoses and quick connect couplings suitable for BXD and BSD torque wrenches
Technical Data :
| TYPE | BHPA-2 | BHPA-4 |
| Working Pressure | 70 MPa | 70 MPa |
| Drive | Air | Air |
| Air Pressure | ≥3.4 m 3/min | ≥3.4 m 3/min |
| Power | 4.0HP | 4.0HP |
| Tank Capacity | 5.5L | 5.5L |
| Flow Rate | 10-2-21.1 L/min | 10-2-21.1 L/min |
| Oil Cooler | Yes | Yes |
| Weight | 19kg | 21kg |
| Pill Outputs | 4x1/4"NPT | 8x1/4"NPT |
| Air in | 4~8 bar | 4~8 bar |

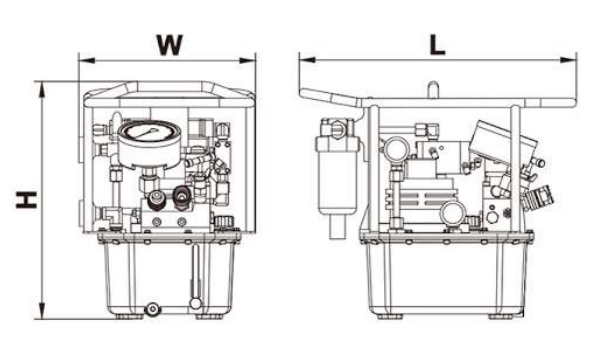

| LxWxH(mm) | 442x282x377 | 460x282x377 |

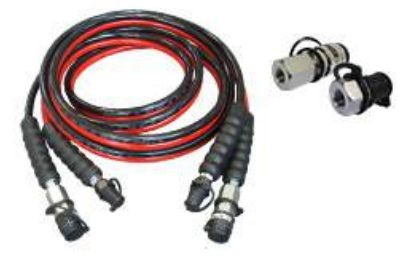

TORQUE WRENCH PUMP ACCESSORIES
» High quality hydraulic torque wrench bonded twin hose sets
» Maximum working pressure of 700 bar with 4:1 safety factor
» Ergonomically designed protective, strain reliever hand grips on both ends
Hose length up to 100 meters
Supplied with quick connect couplings
Working pressure 700 bar
| Model | Photograph | Max operating Pressure (Mpa) | Hose end | Hose Length (M) | |
| End one | End two | ||||
| BH64 series twin hydraulic hose |  |
72 | 1/4"NPT | 1/4"NPT | 6 9 |
| BH74 series hydraulic hose |  |
72 | 1/4"NPT | 1/4"NPT | 6 9 |
| Bh78 series hydraulic hose | |
100 | 3/8"NPT | 3/8"NPT | 1.8 4.5 6 |
