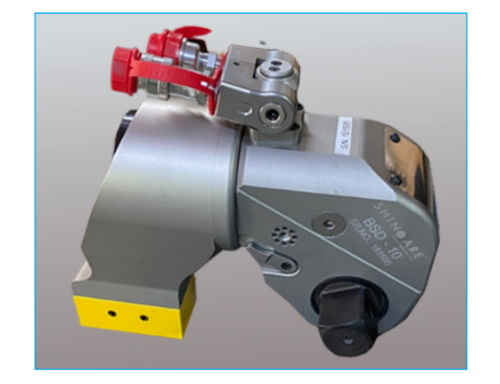

BSD HYDRAULIC TORQUE WRENCHES - SQUARE DRIVE
Torque Capacity up to 36872 Nm
Torque Accuracy of +/- 3 %
Working Pressure 700 bar
» Compact, lightweight aluminium body construction.
» Output torque capacities from 183 to 34725 Nm.
» Choice of square drive sizes from ¾" to 2 ½".
» Reversible square drive for tightening or loosening applications.
» Multi-position reaction arm with safety lock feature.
» Fitted with 360o uni-swivel quick release couplings for easy positioning of hydraulic hoses during operation.
» The 360o x 180o degree swivel is free to operation with no space limitation.
» Optional Allen hex drives available from ½" to 2 ¼" and 14 to 60 mm.
» The new locking coupler ensures the oil keep free access.
Technical Data :
PART |
BSD-1 |
BSD-3 |
BSD-5 |
BSD-8 |
BSD-10 |
BSD-20 |
BSD-25 |
Torque (NM) |
183-1837 |
451-4512 |
752-7528 |
1078-10780 |
1551-15516 |
2666-26664 |
3472-34725 |
Bolt Size (M) |
16-36 |
22-48 |
27-56 |
30-64 |
36-72 |
42-90 |
48-100 |
Weight (Kg) |
2.5 |
5 |
10 |
11 |
15 |
26.5 |
35 |
Square Drive |
3/4" |
1" |
1-1/2" |
1-1/2" |
1-1/2" |
2-1/2" |
2-1/2" |

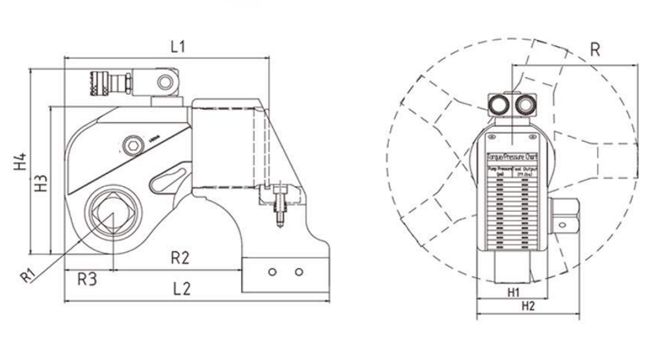

DIMENSIONS
Model No. / Dimension |
BSD-1 |
BSD-3 |
BSD-5 |
BSD-8 |
BSD-10 |
BSD-20 |
BSD-25 |
L1 |
144.5 |
178 |
210.5 |
222 |
245.5 |
307.5 |
323 |
L2 |
173 |
229 |
270.5 |
293 |
317.5 |
383.5 |
401 |
H1 |
50 |
68 |
80 |
90 |
100 |
120 |
137 |
H2 |
72 |
95 |
123 |
134 |
142 |
183 |
200 |
H3 |
96 |
127 |
149 |
167 |
182 |
220 |
247 |
H4 |
131 |
176.5 |
199 |
217 |
232 |
270 |
297 |
R |
91.5 |
123.5 |
140 |
165 |
178 |
213 |
228 |
R1 |
26 |
34 |
39 |
47 |
51 |
59 |
66 |
R2 |
85 |
114 |
137 |
153 |
154 |
186 |
199 |
R3 |
29 |
40 |
46.5 |
47 |
58.5 |
71 |
72.5 |

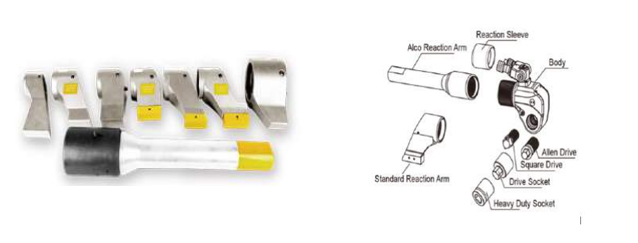

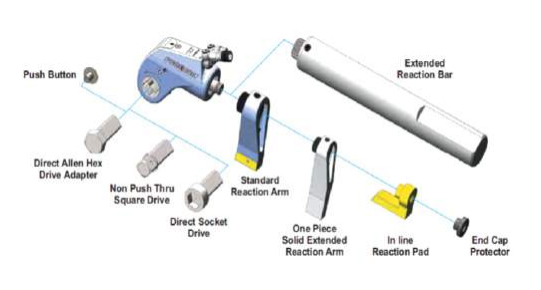

BSD SERIES ACCESSORIES
For Special Reaction Arm,consult to SIPL!

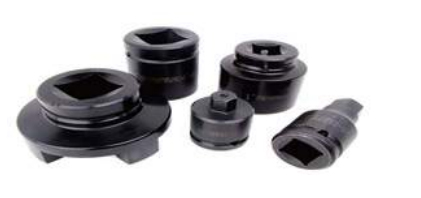

IMAPACT SOCKETS (Standard and Deep)
Suitable for ¾", 1", 1.1/2" and 2.1/2" Square Drive from A/F 14 mm to 165 mm
