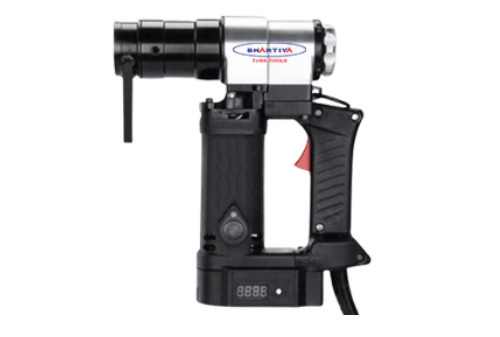

Electric Torque Wrenches (EWH Series)

EWH Series



Electric torque wrench is designed to install heavy hex structural bolts, non-impact, electricity. It has square drive end so that same machine can be used for different hexagon nut by using suitable socket. It shuts off when the torque requirements is reached. The tools offers a non-reactive torque controlled option for hex bolt installation. This series of wrenches adopts German motors. Strong power, Durable and Stable performance are its famous features.



FEATURES:

» Available with both direction forward and reverse.
» Shortest profile and compact socket make accessible to bolts at any narrow space.
» Easy switch directions Appling reaction arm to closet object, Tighten up to target torque.
» Perfect solution for your work at narrow space.
» Easily set your target torque with dial on the Controller.
» Versatile performance of our electric torque wrench for bridge construction, steel fabrication and any kind of heavy industry.
» Ultra compact socket with an integrated reaction arm.

APPLICATION :

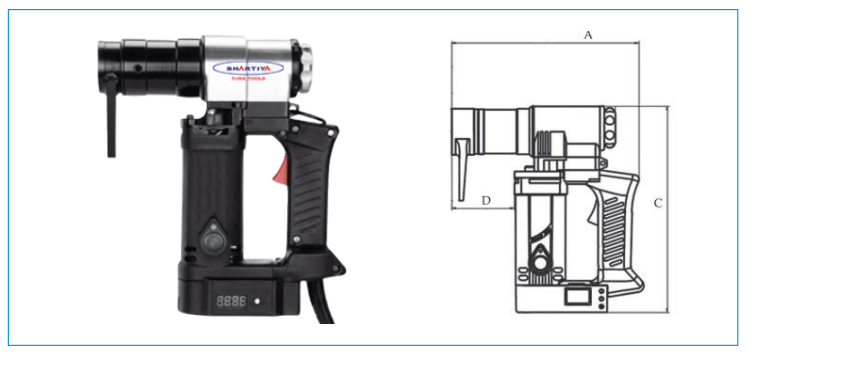

Model No. Torque
(Nm)
Speed
(Rpm)
Weight
(Kg)
Direct Hex
Available
Diameter
D
Overwall
Length
A (mm)
Overwall
Width
C (mm)
EWH-3 100-300 28 4 M10,M12,M16 80 240 267
EWH-5 200-500 20 4.2 M12,M16,M20 111 271 267
EWH-7 300-700 18 4.6 M16,M20,M22 54 221 269
EWH-9 400-900 16 5.1 M20,M22,M24 71 238 275
EWH-12 500-1200 14 6.3 M22,M24,M27 50 225 287
EWH-17 800-1700 12 7 M24,M27,M30 81 286 287
EWH-21 1000-2100 10 7.2 M27,M30,M33 95 274 286
EWH-25 1100-2500 5 9 M30,M33,M36 107 283 293
EWS-35 1700-3500 4.5 15 M33,M36,M42 107 283 293
