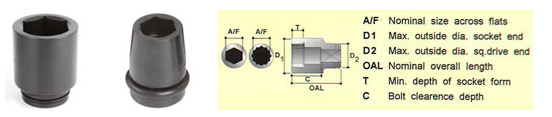

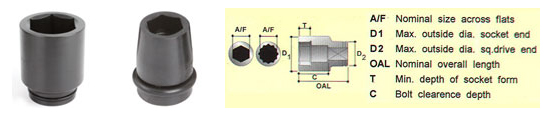

A/F mm |
MODEL NO. |
D1 mm |
D2 mm |
T mm |
C mm |
OAL mm |
Wt. Kg. |
|---|---|---|---|---|---|---|---|
8 9 10 |
S-06M8 S-06M9 S-06M10 |
14.0 15.0 16.0 |
19.0 19.0 19.0 |
6.0 7.0 7.0 |
14.0 14.0 14.0 |
25.5 25.5 25.5 |
0.030 0.031 0.032 |
11 12 13 |
S-06M11 S-06M12 S-06M13 |
17.0 19.0 20.0 |
19.0 19.0 20.0 |
8.0 9.0 9.0 |
14.0 14.0 14.0 |
25.5 25.5 25.5 |
0.033 0.036 0.041 |
14 15 16 |
S-06M14 S-06M15 S-06M16 |
21.0 22.0 24.0 |
21.0 22.0 22.0 |
10.0 10.0 10.0 |
18.0 18.0 18.0 |
30.0 30.0 30.0 |
0.053 0.059 0.066 |
17 18 19 |
S-06M17 S-06M18 S-06M19 |
25.0 26.0 27.0 |
22.0 22.0 22.0 |
12.0 12.0 12.0 |
18.0 18.0 18.0 |
30.0 30.0 30.0 |
0.072 0.077 0.082 |
20 21 22 |
S-06M20 S-06M21 S-06M22 |
29.0 30.0 31.0 |
22.0 22.0 22.0 |
12.0 12.0 13.0 |
18.0 18.0 18.0 |
30.0 30.0 30.0 |
0.094 0.099 0.106 |
