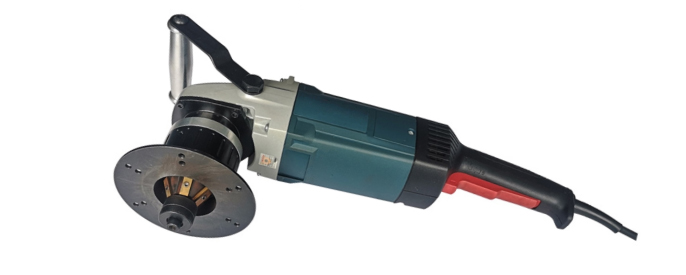

Plate Beveling Machine INDO PB-15

INDO PB-15 is a versatile, light weight, compact, portable beveling machine for use on flat, curved or rolled plates. It can also be used for OD and ID bevels on pipe, including chamfering, and can deburr and countersink holes with a minimum diameter of 1-9/16" (40 mm). Interchangeable bevel milling heads, utilizing indexable carbide inserts, are available for bevel angles of 22.50, 300, 37.50, 450 and 600. A radius milling head is also available with indexable carbide inserts to radius plate edges with a perfect 2, 3, & 4 radius.

The INDO PB-15 is equipped with a simple bevel depth adjustment, overload protection and electronic speed control for use on a variety of materials, including aluminum and steel. The compact design makes the INDO PB-15 an excellent machine for many fabrication applications.

The INDO PB-15 is highly efficient for edge weld preparation and for producing radiused plate edges for optimal paint and coating adhesion.

FEATURES :

» Guide plate and roller guides insure consistent, highly accurate bevel angles.
» Optional anti-abrasion plate and special inserts available for aluminum milling.
» Ideal solution for radius milling for paint and coating preparation.
» Versatile tool which can be used to bevel or radius mill straight edges, contours and holes.
» Single speed control permits adjustment of milling head for use on various grades of steel & aluminum.
» Aluminum and carbon steel.
» Produces no hazardous dust, greatly improving the working environment.
» Highly-efficient beveling machine - up to 10 times faster than grinding.
» Lightweight ergonomic design reduces worker fatigue.
