Hydraulic Tube Expansion Machine

Hydraulic Tube Expansion Machine



Features :
1. Silent during use. In comparison electric and pneumatic tube expansion systems are noisy.
2. Drive communicates with the pump via 9v DC remote control. This ensures safety & eliminates the need of electrical
3. Compact, therefore easy to use inside boiler drums.
4. Compatibility- Same power pack for all 4 drives to expand 5/8" OD to 4" OD tube.
5. Very high Torque developed- can expand large diameter, thick wall tubes in thick tube sheets easily.
6. Long life + low maintenance.
7. Boiler erections get completed in record time.
8. Can be use for long working hours because drive is unaffected by heat.
9. Dual drive power pack is available to connect 2 drives to single power pack to cut down tube expansion time
    by further 50%.
10. Microprocessor controls on the pump automate the expansion cycle. Trip, pause & reverse times for the drive
     are adjustable. No need for repeated manual STOP/ START of the drive during expansion cycle- Complete automatic.

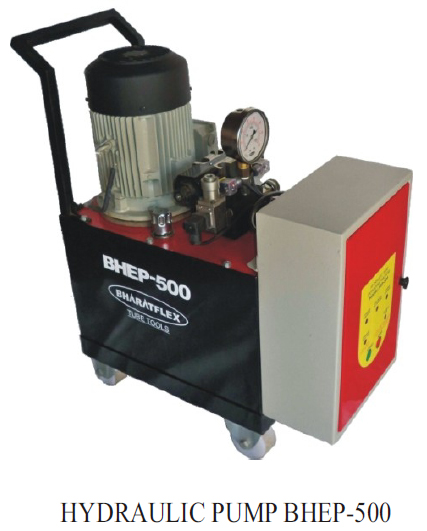

The hydraulic pump supplied with hydraulic drive incorporates the latest state of the technology resulting in a subcompact pump developing 100 bar pressure. The system is mounted on four wheels for on site manevourability. Expansion of tubes is regulated by adjusting pressure setting pump. Once required amount of wall thinning is achieved the drive trips automatically.

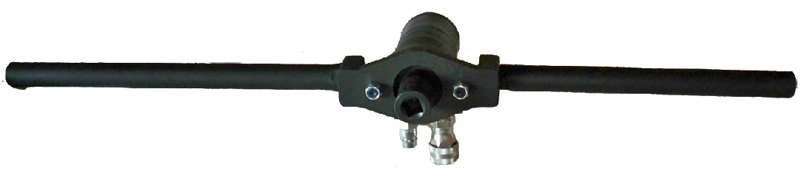

Hydraulic Drives

Accessories For Expansion System

Hydraulic Hose
Supply Cable
Hydraulic Drive Socket
