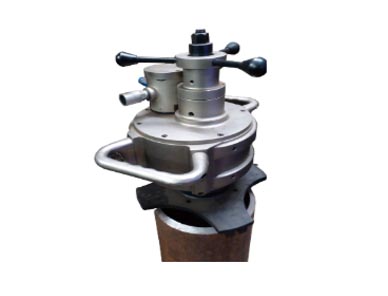

The BBM-12000 is a combination of power and range in a light and portable design. Rugged and balanced machine suitable for tubes and pipes in the size range of 100mm to 306mm in internal diameter
MODEL | ELECTRIC | PNEUMATIC | |
LOCKING RANGE ID | MM | 100-306 | 100-306 |
IDLE SPEED | RPM | 35 | 30 |
TORQUE | NM | 185 | 323 |
FEEDING STROKE | MM | 50 | 50 |
PNEUMATIC MOTOR POWER | HP | 1.85 | - |
AIR CONSUMPTION | CFM | 65-70 | - |
AIR PRESSURE | BAR (PSI) | 6(90) | - |
ELECTRIC MOTOR POWER | WATT | - | 1100 |
WEIGHT | KG | 42.5 | 43.5 |
