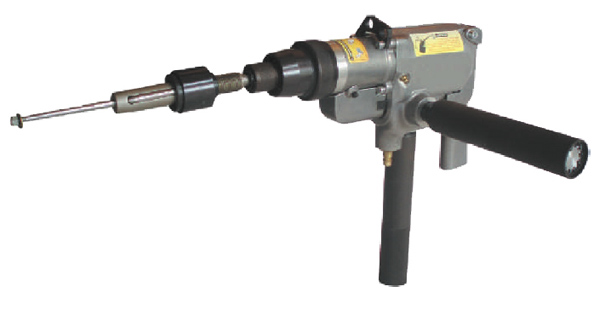

Pneumatic Rolling Drive
Pneumatic Rolling Drive
Our new model PUSH & PUll B50-600 Pneumatic Rolling Motor has been specially engineered to ensure uniform tube to tube sheet expansions, there by preventing the under & over rolling of the tubes.
Features :
» Low Weight Aluminum Body.
» Erogonomically push & pull throttle.
» Precision control measures torque output.
» Automatically stops tube expension at defined setting.
| Model No. | Free Speed Rpm | Tube Capacity Inch | Min Torque Nm | Max Torque Nm | Air Consumption L/Min | Weight Kg |
| B50-1250 | 1250 | 3/4 | 1.58 | 12.21 | 1700 | 4.6 |
| B50-600 | 600 | 1 | 2.49 | 21.81 | 1700 | 4.6 |
| B50-400 | 400 | 1.1/4 | 5.00 | 36.00 | 1700 | 4.6 |
