2 1/2" - Fractional Deep Hexagon

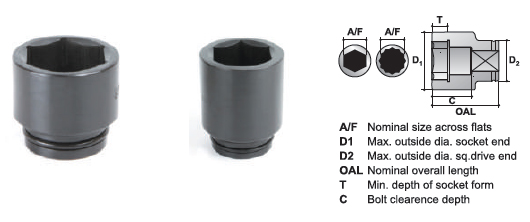

A/F inch	MODEL NO.	D1 inch	D2 inch	T inch	C inch	OAL inch	Wt. Lbs.
1.5/8 1.3/4 1.7/8	S-4026L S-4028L S-4030L	3.386 3.386 3.386	4.173 4.173 4.567	1.024 1.024 1.102	4.331 4.331 4.331	6.614 6.614 6.614	13.80 13.80 13.80
2 2.1/8 2.1/4	S-4032L S-4034L S-4036L	3.543 3.642 3.789	4.567 4.882 4.882	1.142 1.181 1.260	4.331 4.331 4.606	6.614 6.614 6.890	15.90 17.80 18.90
2.3/8 2.1/2 2.5/8	S-4038L S-4040L S-4042L	3.937 4.133 4.281	5.000 5.000 5.000	1.147 1.496 1.496	4.606 5.000 5.000	6.890 7.283 7.283	20.00 21.80 22.30
2.3/4 2.7/8 2.15/16	S-4044L S-4046L S-4047L	4.429 4.577 4.675	5.000 5.000 5.000	1.575 1.575 1.654	5.000 5.000 5.000	7.283 7.283 7.283	22.80 23.40 23.70
3 3.1/8 3.1/4	S-4048L S-4050L S-4052L	4.774 4.921 4.999	5.000 5.000 5.000	1.732 1.732 1.890	5.000 5.000 5.394	7.283 7.283 7.677	24.10 24.60 26.30
3.3/8 3.1/2 3.5/8	S-4054L S-4056L S-4058L	5.197 5.354 5.394	5.000 5.000 5.000	1.969 2.047 2.047	5.276 5.315 5.315	7.677 7.677 7.677	28.70 29.50 30.40
3.3/4 3.7/8 4	S-4060L S-4062L S-4064L	5.591 5.787 5.827	5.000 5.000 5.000	2.126 2.205 2.205	5.472 5.315 5.315	7.835 7.677 7.677	31.80 32.40 33.20
4.1/8 4.1/4 4.3/8	S-4066L S-4068L S-4070L	6.063 6.299 6.379	5.000 5.000 5.000	2.362 2.520 2.520	5.709 5.866 5.866	8.071 8.228 8.228	35.90 38.20 39.10
4.1/2 4.5/8 4.7/8	S-4072L S-4074L S-4078L	6.496 6.536 7.047	5.000 5.000 5.000	2.638 2.638 2.874	5.906 5.906 6.181	8.268 8.268 8.465	39.00 40.20 45.30
5 5.1/8 5.1/4	S-4080L S-4082L S-4084L	7.163 7.203 7.203	5.000 5.000 5.000	2.992 2.992 2.992	6.181 6.181 6.181	8.465 8.465 8.465	47.20 48.30 48.30
5.3/8 5.1/2 5.5/8	S-4086L S-4088L S-4090L	7.609 7.717 7.757	5.984 5.984 5.984	3.110 3.228 3.228	6.378 6.575 6.575	8.661 8.858 8.858	57.20 57.70 58.50
5.3/4 6.1/8 6.1/2	S-4092L S-4098L S-40104L	8.081 9.016 9.016	5.984 6.890 6.890	3.346 3.780 3.780	6.772 7.165 7.165	9.055 9.449 9.449	64.10 82.60 82.60
6.7/8 7 7.1/4	S-40110L S-40112L S-40116L	9.528 9.685 10.000	6.890 6.890 6.890	3.397 4.055 4.173	7.165 7.362 7.559	9.449 9.646 9.843	89.90 91.60 100.30
7.1/2 7.5/8 7.3/4	S-40120L S-40122L S-40124L	10.276 10.433 10.433	6.890 6.890 6.890	4.291 4.409 4.409	7.559 7.835 7.835	9.843 10.118 10.118	103.20 106.20 106.20
7.7/8 8 8.1/8	S-40126L S-40128L S-40130L	10.748 11.748 11.220	6.890 6.890 6.890	4.528 4.528 4.724	7.953 7.953 7.953	10.236 10.236 10.236	114.20 115.30 120.40
8.1/4 8.3/8 8.1/2	S-40132L S-40134L S-40136L	11.220 11.225 11.496	6.890 6.890 6.890	4.724 4.724 4.843	7.953 7.953 8.346	10.236 10.236 10.630	120.40 121.30 130.70
9 9.1/4	S-40144L S-40148L	12.029 12.029	6.890 6.890	5.118 5.118	8.661 8.661	10.630 10.630	138.50 138.50
