2 1/2" - Fractional Hexagon

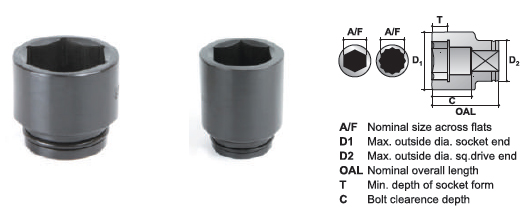

A/F inch	MODEL NO.	D1 inch	D2 inch	T inch	C inch	OAL inch	Wt. Kg.
1.5/8 1.3/4 1.7/8	S-4026 S-4028 S-4030	3.386 3.386 3.386	4.567 4.567 4.567	1.102 1.102 1.102	1.811 1.811 1.811	4.094 4.094 4.094	11.30 11.30 11.30
2 2.1/8 2.1/4	S-4032 S-4034 S-4036	3.543 3.642 3.789	4.567 4.882 4.882	1.142 1.181 1.260	1.811 1.811 2.047	4.094 4.094 4.331	11.10 12.90 13.50
2.3/8 2.1/2 2.5/8	S-4038 S-4040 S-4042	3.937 4.133 4.281	5.000 5.000 5.000	1.147 1.496 1.496	2.205 2.283 2.283	4.488 4.567 4.567	14.60 15.00 15.20
2.3/4 2.7/8 2.15/16	S-4044 S-4046 S-4047	4.429 4.577 4.675	5.000 5.000 5.000	1.575 1.575 1.654	2.362 2.362 2.520	4.646 4.646 4.803	15.50 15.70 16.20
3 3.1/8 3.1/4	S-4048 S-4050 S-4052	4.774 4.921 4.999	5.000 5.000 5.000	1.732 1.732 1.890	2.520 2.520 2.677	4.803 4.803 4.961	16.40 16.50 16.70
3.3/8 3.1/2 3.5/8	S-4054 S-4056 S-4058	5.197 5.354 5.394	5.000 5.000 5.000	1.969 2.047 2.047	2.677 2.756 2.756	5.079 5.118 5.118	18.90 19.50 20.40
3.3/4 3.7/8 4	S-4060 S-4062 S-4064	5.591 5.787 5.827	5.000 5.000 5.000	2.126 2.205 2.205	2.835 3.071 3.071	5.197 5.433 5.433	20.60 21.60 22.40
4.1/8 4.1/4 4.3/8	S-4066 S-4068 S-4070	6.063 6.299 6.379	5.000 5.000 5.000	2.362 2.520 2.520	3.228 3.386 3.386	5.591 5.748 5.748	24.20 26.50 26.40
4.1/2 4.5/8 4.7/8	S-4072 S-4074 S-4078	6.496 6.536 7.047	5.000 5.000 5.000	2.638 2.638 2.874	3.504 3.504 3.740	5.866 5.866 6.024	26.80 28.00 30.10
5 5.1/8 5.1/4	S-4080 S-4082 S-4084	7.163 7.203 7.203	5.000 5.000 5.000	2.992 2.992 2.992	3.858 3.858 3.858	6.142 6.142 6.142	31.00 32.10 32.10
5.3/8 5.1/2 5.5/8	S-4086 S-4088 S-4090	7.609 7.717 7.757	5.984 5.984 5.984	3.110 3.228 3.228	4.055 4.173 4.173	6.339 6.457 6.457	41.10 40.90 41.70
5.3/4 6.1/8 6.1/2	S-4092 S-4098 S-40104	8.081 9.016 9.016	5.984 5.890 6.890	3.346 3.780 3.780	4.291 4.803 4.803	6.575 7.087 7.087	45.20 59.80 59.80
6.7/8 7 7.1/4	S-40110 S-40112 S-40116	9.528 9.685 10.000	6.890 6.890 6.890	3.937 4.055 4.173	5.039 5.157 5.276	7.323 7.441 7.559	66.40 66.60 71.60
7.1/2 7.5/8 7.3/4	S-40120 S-40122 S-40124	10.276 10.433 10.433	6.890 6.890 6.890	4.291 4.409 4.409	5.394 5.591 5.591	7.677 7.874 7.874	74.90 76.60 76.60
7.7/8 8 8.1/8	S-40126 S-40128 S-40130	10.748 11.748 11.220	6.890 6.890 6.890	4.528 4.528 4.724	5.709 5.709 5.906	7.992 7.992 8.189	82.50 83.60 87.80
8.1/4 8.3/8 8.1/2	S-40132 S-40134 S-40136	11.220 11.225 11.496	6.890 6.890 6.890	4.724 4.724 4.843	5.906 5.906 6.024	8.189 8.189 8.307	87.80 88.70 92.30
9 9.1/4	S-40144 S-40148	12.029 12.029	6.890 6.890	5.118 5.118	6.299 6.299	8.583 8.583	101.80 101.80
