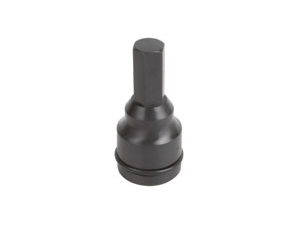

Metric Hex Driver Sockets
HEX A/F mm |
MODEL NO. |
BIT LENGTH |
OAL mm |
Wt. Kg. |
|---|---|---|---|---|
8 10 12 |
12M 08H 12M 10H 12M 12H |
12.0 18.0 25.0 |
62.0 18.0 75.0 |
0.240 0.250 0.300 |
14 17 19 |
12M 14H 12M 17H 12M 19H |
25.0 35.0 35.0 |
75.0 88.0 88.0 |
0.300 0.450 0.450 |
22 24 27 |
12M 22H 12M 24H 12M 27H |
40.0 45.0 45.0 |
93.0 93.0 100.0 |
0.500 0.550 0.700 |
Fractional Hex Driver Sockets
HEX A/F inch |
MODEL NO. |
BIT LENGTH |
OAL inch |
Wt. lbs. |
|---|---|---|---|---|
3/8 7/16 1/2 |
12 06H 12 07H 12 08H |
0.708 0.708 0.984 |
2.559 2.559 2.952 |
0.550 0.550 0.660 |
9/16 5/8 3/4 |
12 09H 12 10H 12 12H |
0.984 1.377 1.377 |
2.952 3.464 3.464 |
0.660 0.715 0.990 |
13/16 7/8 1 |
12 13H 12 14H 12 16H |
1.574 1.574 1.771 |
3.661 3.661 3.937 |
1.100 1.210 1.210 |

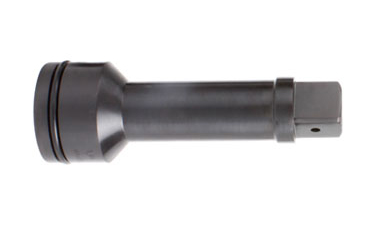

Regular Extensions
OAL mm (inch) |
MODEL NO. |
SHANK DIA mm (inch) |
HEAD DIA mm (inch) |
Wt. Kg. (lbs.) |
|---|---|---|---|---|
75 (3") 125 (5") 175 (7") |
E 1203 E 1205 E 1207 |
25.0 (0.984) |
44.0 (1.732) |
0.60 (1.32) 0.80 (1.76) 1.00 (2.20) |
250 (10") 330 (13") |
E 1210 E 1213 |
1.20 (2.64) 1.50 (3.30) |

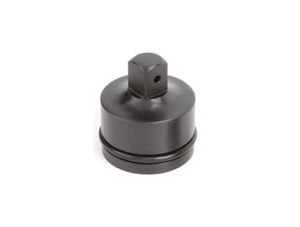

Square Adaptors
SIZE |
MODEL NO. |
HEAD DIA mm (inch) |
OAL mm (inch) |
Wt. Kg. (lbs.) |
|---|---|---|---|---|
3/4" F X 1/2" M 3/4" F X 1" M |
A 1208 A 1216 |
44.0 (1.732) |
56.0 (2.204) 65.0 (2.559) |
0.33 (0.72) 0.45 (0.99) |
Universal Joint
SQUARE DRIVE |
MODEL NO. |
DIA mm (inch) |
OAL mm (inch) |
Wt. Kg. (lbs) |
|---|---|---|---|---|
3/4" |
U 1212 |
44.0 (1.732) |
94.0 (3.700) |
0.60 (1.32) |
Double Male Extensions
OAL mm (inch) |
MODEL NO. |
SHANK DIA mm (inch) |
HEAD DIA mm (inch) |
Wt. Kg. (lbs.) |
|---|---|---|---|---|
75 (3") 125 (5") 175 (7") |
S 1203 S 1205 S 1207 |
25.0 (0.984) |
19.0 (0.750) |
0.40 (0.88) 0.55 (1.21) 0.75 (1.65) |
250 (10") 330 (13") 410 (16") |
S 1210 S 1213 S 1216 |
0.95 (2.09) 1.05 (2.31) 1.60 (3.50) |
Double Female Adaptors
SIZE |
MODEL NO. |
HEAD DIA mm (inch) |
OAL mm (inch) |
Wt. Kg. (lbs.) |
|---|---|---|---|---|
3/4" F X 1/2" F 3/4" F X 1" F |
AN 1208 AN 1212 |
44.0 (1.732) |
55.0 (2.165) 63.00 (2.480) |
0.45 (0.99) 0.57 (1.25) |
