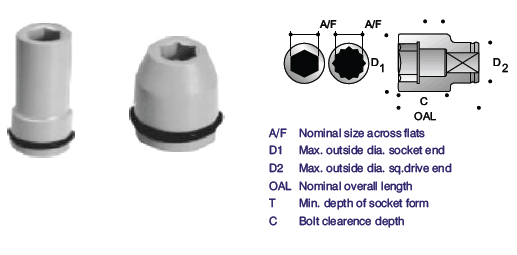

A/F mm |
MODEL NO. |
D1 mm |
D2 mm |
T mm |
C mm |
OAL mm |
Wt. Kg. |
|---|---|---|---|---|---|---|---|
17 19 21 |
S-12M 17T S-12M 19T S-12M 21T |
27.9 30.4 32.9 |
42.0 42.0 42.0 |
12.0 12.0 13.0 |
21.0 21.0 24.0 |
45.0 45.0 48.0 |
0.292 0.296 0.312 |
22 23 24 |
S-12M 22T S-12M 23T S-12M 24T |
34.3 35.3 36.8 |
42.0 42.0 42.0 |
13.0 13.0 15.0 |
24.0 24.0 24.0 |
48.0 48.0 48.0 |
0.317 0.318 0.322 |
26 27 28 |
S-12M 26T S-12M 27T S-12M 28T |
38.5 40.5 42.0 |
42.0 42.0 42.0 |
15.0 16.0 16.0 |
24.0 24.0 24.0 |
48.0 48.0 48.0 |
0.320 0.329 0.334 |
30 32 33 |
S-12M 30T S-12M 32T S-12M 33T |
44.4 46.8 48.0 |
44.0 44.0 44.0 |
18.0 18.0 18.0 |
27.0 27.0 27.0 |
51.0 51.0 51.0 |
0.391 0.410 1.416 |
34 36 38 |
S-12M 34T S-12M 36T S-12M 38T |
49.3 51.9 54.4 |
44.0 44.0 54.0 |
20.0 20.0 23.0 |
30.0 30.0 35.0 |
54.0 54.0 59.0 |
0.449 0.477 0.684 |
41 42 |
S-12M 41T S-12M 42T |
58.4 59.4 |
54.0 54.0 |
23.0 25.0 |
35.0 35.0 |
59.0 59.0 |
0.736 0.737 |
43 46 |
S-12M 43T S-12M 46T |
60.4 64.0 |
54.0 54.0 |
25.0 25.0 |
38.0 38.0 |
62.0 62.0 |
0.778 0.833 |
