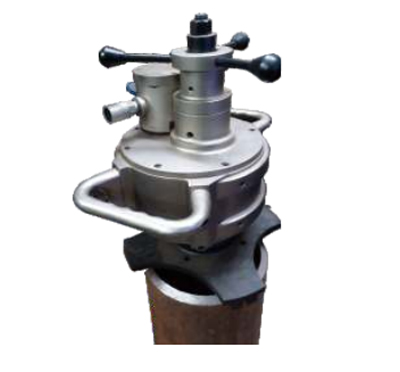

SuperMax 7-24 Portable Pipe Beveling Machine
DESCRIPTION : Pipe beveling machine SUPERMAX 7-24 is designed for piping industries and welding workshops for processing pipelines, boilers and fittings.The SUPERMAX 7-24 is equipped with a 6 points of contact locking system able to grant stability and absence of vibrations during the operations. Available in pneumatic & electric versions.
RANGE : Working range from 7" to 20" (180-504 mm) in standard configuration and up to 24" (609,6 mm) with the optional extension kit.
MATERIALS : Carbon steel, stainless steel, duplex, inconel, others.
FUNCTIONS : Milling processes, external and internal tapering, external and internal beveling of pipes.
| SUPERMAX 7-24 | MODEL | |
| ELECTRIC | PNEUMATIC | |
| Loacking Range (ID) | 180mm to 500mm | 180mm to 500mm |
| Working Range(ID) | 190mm-508mm | 190mm-508mm |
| Idle Speed (RPM) | 14 | 14 |
| Torque (Nm) | - | - |
| Feeding Stroke(mm) | 50 | 50 |
| Pneumatic Motor Power (HP) | - | 1.85 |
| Air Consumption (CFM) | - | 65-70 |
| Air Pressure (BAR/PSI) | - | 6(90) |
| Air Hose Connection(BSP) | - | 3/4" |
| Electric Motor Mower(Watt) | 1300 | - |
| Voltage(Volt) | 220 | - |
| Frequency(Hz) | 50 | - |
| Weight(kg) | 150 | 150 |
With Optional kit: locking range up to 589.28mm (23.2") and working range up to 609.6mm (24").
