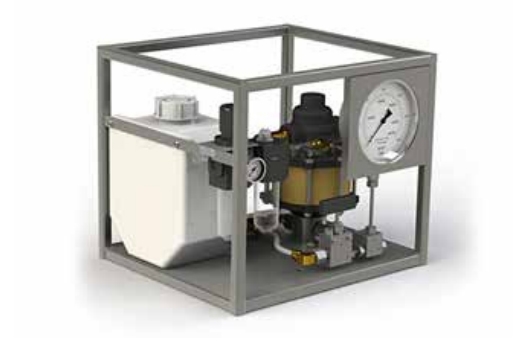

The air operated powerpack for bolt tensioner BATP-1500 are designed to meet the highest technical and safety requirements of high pressure equipment.
Technical Features :
» Stainless Steel Frame: The hydraulic unit is installed in a weather proof stainless steel protection frame.
» Logical Control Panel: Logical layout design engraved for easy operation.
» Calibrated Pressure Gauge: Calibrated 150mm (6”), liquid filled, SS Frame, 2500 bar
rating pressure gauge with dual reading of bar & psi.
» Complete Air System: System includes FRL Unit, air pressure gauge and control knob
for safe air control and supply.
» Higher Operating Pressure: Pump has max working pressure of 1500 bar to cover all
bolt tensioning applications.
» Light Weight: Unit weighs only 18 Kg and measures 450mm x 340mm x 480mm.
» Lower Input air Pressure: Higher pressure ratio of 1 : 350 ensures less input air pressure
for operation.
» Quick Connect Outlet: Pump comes fitted with a quick connect outlet for easy connection
of hydraulic hose.
Optional Accessories:
» High pressure hose» High pressure QRC (Quick Release Coupling)
» Digital Pressure Gauge
| Technical Details - Model BATP-1500 (Bhartiya Air Operated Tensioner Pump) | ||
| Pump | ||
| Pressure Ratio | - | 1:350 |
| Displacement Volume | cm3 | 1.3 |
| Operating Pressure, Max. ( at 5.1 bar Pre Limited (PL) Air Pressure ) | bar | 1800 |
| Compressed air supply (air drive) | ||
| System Operating Air Pressure, Max. | bar | 5.1 |
| Safety Valve Set Pressure | bar | 5.5 |
| Stainless Steel Tank Capacity | ||
| Oil Tank capacity | litre | 5 |
