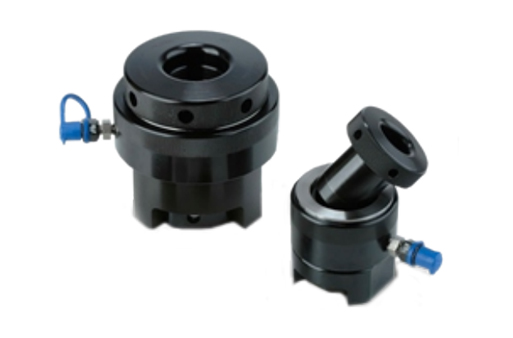

Top Side Bolt Tensioners (SBT)


Top Side Bolt Tensioners (SBT)

Features :

» Shingare hydraulic bolt tensioners have eight load cells from M16 to M150 or from ⅝" to 5¾"
» Twin ports for quick connection of multiple tools.
» Only one size of bridge per size of load cell.
» Detachable and rotational bridge simplifies bolt tensioner positioning.
» Full bridge window.
» Black surface treatment protects against corrosion
» Anti-slip grip for more secure handling
» Universal and multi-use tool.
» Double Straight Reaction Arm
» Blank Reaction Arm



SHINGARE BOLT TENSIONER (SBT)
SHINGARE BOLT TENSIONER (SBT)

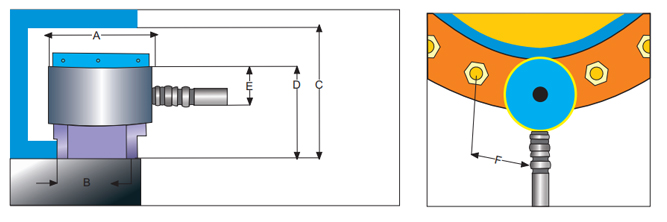

Model Bolt Size Cylinder Area Dimension Weight
Metric Inch Tons Cm2 A B C D E F Kg
SBT-3 M16
M18
M20
M22
M24
-
3/4"
-
7/8"
1
23.5 15.7 75 32.5 168 90 62 47-51 2
SBT-5 M27
M30
M33
M36
M39
1-1/8"
-
1-1/4"
1-3/8"
1-1/2"
50 33 102 47 187 106 60 65-71 4
SBT-9 M39
M42
M45
M48
1-1/2"
1-5/8"
1-3/4"
1-7/8"
90 59.7 133 61 208 120 60 86-93 6
SBT-13 M52
M56
M60
M64
2"
2-1/4"
-
2-1/2"
130 83 163 73 231 135 62 106-114 10
SBT-19 M64
M68
M72
M76
2-1/2"
-
2-3/4"
3"
190 123 193 86.5 254 150 62 129-135 15
SBT-27 M76
M80
M85
M90
M95
M100
3"
-
3-1/4"
3-1/2"
3-3/4"
4"
270 176 233 110 286 180 73 155-167 24
SBT-44 M110
M120
M125
4-1/2"
4-3/4"
5"
440 251 280 111-121 304-338 181-197 37-40 210-233 45
SBT-54 M130
M140
M150
5-1/4"
5-1/2"
5-3/4"
540 317 325 126-141 354-388 202-216 42-47 243-275 73
