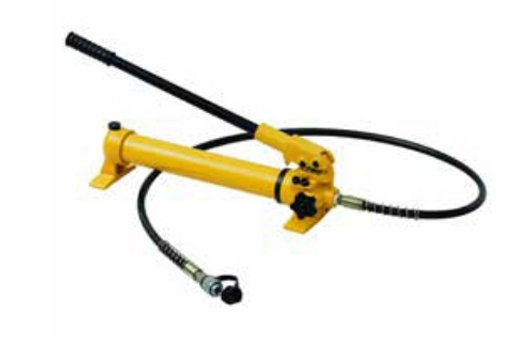

Hand Pump For Bolt Tensioner (SHP)


Hand Pump For Bolt Tensioner (SHP)

The SHINGARE double stage hand pumps comes with pressure gauge as standard, this gives the user precise and safe control over the work carried out. The gauge is directly mounted onto the pump and is well protected by the specially designed pump lever.



Features :

» Return connections on all pumps.
» Robust design
» Aluminium tank
» Easy and simple maintenance

Model No. : SHP
Maximum Working Pressure :- 1600 Bar



Pump Type Usable Oil Capacity Model
Number
Pressure Rating Output Oil Volume Each Stroke Handle Force Dimensions (mm) Output Adapter Weight
(Bar) (cm^3)
(cm^3) Nm 1st Stage 2nd Stage 1st Stage 2nd Stage (N) A B C   (Kg)
Double
Speed
655 SHP 7 - 0.7 25 700 15 2.6 300 520 133 119

NPT 3/8”

G 1/4”

5.3
1440 SHP 7-1 25 700 32 2.5 577 120 170 6.3
2200 SHP 7-2 25 700 16 2.5 539 146 170 8
3240 SHP 7-3 25 700 32 2.5 582 200 170 10
5860 SHP 7-4 25 700 32 2.5 667 250 172 14.5
7500 SHP 7-8 14 700 126 4.8 742 308 270 27
1440 SHP 16-1 15 1600 32 2.5 375 577 577 170 6.3
3240 SHP 16-3 15 1600 32 2.5 577 140 190 10
