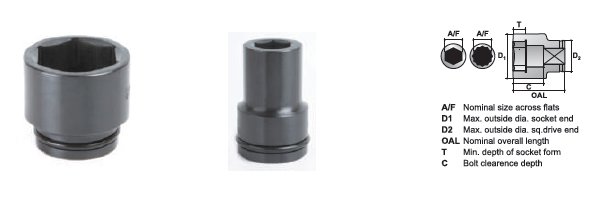

A/F inch |
MODEL NO. |
D1 inch |
D2 inch |
T inch |
C inch |
OAL inch |
Wt. lbs. |
|---|---|---|---|---|---|---|---|
3/4 13/16 7/8 |
16 12DH 16 13DH 16 14DH |
1.417 1.496 1.575 |
2.008 2.008 2.008 |
0.551 0.551 0.551 |
0.984 0.984 0.984 |
2.165 2.165 2.165 |
1.13 1.13 1.14 |
15/16 1 1.1/16 |
16 15DH 16 16DH 16 17DH |
1.654 1.772 1.811 |
2.008 2.008 2.008 |
0.630 0.630 0.630 |
1.063 1.063 1.063 |
2.244 2.244 2.244 |
1.20 1.24 1.25 |
1.1/8 1.3/16 1.1/4 |
16 18DH 16 19DH 16 20DH |
1.890 1.969 2.047 |
2.008 2.126 2.126 |
0.709 0.709 0.709 |
1.142 1.142 1.142 |
2.323 2.323 2.323 |
1.29 1.45 1.49 |
1.5/16 1.3/8 1.7/16 |
16 21DH 16 22DH 16 23DH |
2.126 2.126 2.244 |
2.126 2.126 2.126 |
0.787 0.787 0.787 |
1.220 1.220 1.220 |
2.402 2.402 2.402 |
1.54 1.51 1.68 |
1.1/2 1.9/16 1.5/8 |
16 24DH 16 25DH 16 26DH |
2.323 2.362 2.520 |
2.126 2.126 2.126 |
0.886 0.886 0.945 |
1.339 1.339 1.417 |
2.520 2.520 2.598 |
1.86 2.88 2.13 |
1.11/16 1.3/4 1.13/16 |
16 27DH 16 28DH 16 29DH |
2.559 2.677 2.677 |
2.126 2.126 2.126 |
0.945 0.945 1.024 |
1.417 1.417 1.496 |
2.598 2.598 2.677 |
2.15 2.27 2.25 |
1.7/8 1.15/16 2 |
16 30DH 16 31DH 16 32DH |
2.795 2.795 2.963 |
2.126 2.126 2.126 |
1.024 1.024 1.102 |
1.496 1.496 1.575 |
2.677 2.677 2.756 |
2.37 2.37 2.67 |
2.1/16 2.1/8 2.3/16 |
16 33DH 16 34DH 16 35DH |
2.963 3.110 3.150 |
2.126 2.441 2.441 |
1.102 1.102 1.181 |
1.575 1.575 1.732 |
2.756 2.756 2.913 |
2.67 3.13 3.21 |
2.1/4 2.5/16 2.3/8 |
16 36DH 16 37DH 16 38DH |
3.307 3.307 3.405 |
2.441 2.441 2.441 |
1.181 1.181 1.260 |
1.732 1.732 1.850 |
2.913 2.913 3.031 |
3.50 3.50 3.77 |
2.7/16 2.1/2 2.9/16 |
16 39DH 16 40DH 16 41DH |
3.543 3.543 3.711 |
2.441 2.441 2.441 |
1.339 1.339 1.417 |
1.929 1.929 2.008 |
3.110 3.110 3.189 |
4.17 4.17 4.38 |
2.5/8 2.11/16 2.3/4 |
16 42DH 16 43DH 16 44DH |
3.711 3.898 3.898 |
2.441 3.386 3.386 |
1.417 1.496 1.496 |
2.008 2.126 2.126 |
3.189 3.307 3.307 |
4.38 6.19 6.19 |
2.13/16 2.7/8 2.15/16 |
16 45DH 16 46DH 16 47DH |
3.898 4.094 4.094 |
3.386 3.386 3.386 |
1.496 1.575 1.575 |
2.126 2.205 2.205 |
3.307 3.504 3.504 |
6.19 6.77 6.77 |
3 3.1/16 3.1/8 |
16 48DH 16 49DH 16 50DH |
4.094 4.425 4.425 |
3.386 3.386 3.386 |
1.575 1.654 1.654 |
2.205 2.283 2.283 |
3.504 3.583 3.583 |
6.77 7.80 7.80 |
3.3/16 3.1/4 3.5/16 |
16 51DH 16 52DH 16 53DH |
4.425 4.651 4.742 |
3.386 3.386 3.386 |
1.654 1.732 1.732 |
2.283 2.362 2.362 |
3.583 3.661 3.661 |
7.80 8.13 8.48 |
3.3/8 3.7/16 3.1/2 |
16 54DH 16 55DH 16 56DH |
4.742 4.803 4.803 |
3.386 3.386 3.386 |
1.732 1.811 1.811 |
2.362 2.441 2.441 |
3.661 3.740 3.740 |
8.48 8.44 8.44 |
3.5/8 3.3/4 3.7/8 |
16 58DH 16 60DH 16 62DH |
5.118 5.118 5.276 |
4.173 4.173 4.173 |
1.890 1.890 1.969 |
2.520 2.520 2.598 |
3.819 3.819 3.898 |
11.29 11.29 11.44 |
