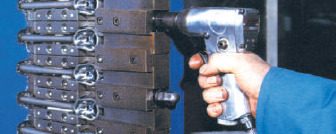

1" Metric Hexagon (Thinwall)

A/F mm	MODEL NO.	D1 mm	D2 mm	T mm	C mm	OAL mm	Wt. Kg.
22 23 24	S-16M 22T S-16M 23T S-16M 24T	35.6 37.0 38.0	51.0 51.0 51.0	14.0 14.0 16.0	25.0 25.0 27.0	55.0 55.0 57.0	0.48 0.48 0.50
25 26 27	S-16M 25T S-16M 26T S-16M 27T	39.5 40.8 42.0	51.0 51.0 51.0	16.0 16.0 16.0	27.0 27.0 27.0	57.0 57.0 57.0	0.50 0.51 0.52
28 29 30	S-16M 28T S-16M 29T S-16M 30T	43.3 44.5 45.9	51.0 51.0 51.0	16.0 18.0 18.0	27.0 29.0 29.0	57.0 59.0 59.0	0.52 0.54 0.55
31 32 33	S-16M 31T S-16M 32T S-16M 33T	47.0 48.3 49.5	51.0 51.0 51.0	18.0 18.0 18.0	29.0 29.0 29.0	59.0 59.0 59.0	0.55 0.56 0.56
34 35 36	S-16M 34T S-16M 35T S-16M 36T	50.0 52.0 53.4	51.0 54.0 54.0	20.0 20.0 20.0	31.0 31.0 31.0	61.0 61.0 61.0	0.59 0.65 0.69
37 38 39	S-16M 37T S-16M 38T S-16M 39T	54.0 55.9 57.1	54.0 54.0 54.0	20.0 22.0 22.0	31.0 34.0 34.0	61.0 64.0 64.0	0.69 0.75 0.78
40 41 42	S-16M 40T S-16M 41T S-16M 42T	58.1 59.9 60.9	54.0 54.0 54.0	22.0 22.0 24.0	34.0 34.0 36.0	64.0 64.0 66.0	0.79 0.82 0.85
43 44	S-16M 43T S-16M 44T	62.0 63.4	54.0 54.0	24.0 24.0	36.0 36.0	66.0 66.0	0.86 0.88
45 46	S-16M 45T S-16M 46T	64.6 65.9	54.0 54.0	24.0 26.0	36.0 38.0	66.0 68.0	0.89 0.93
