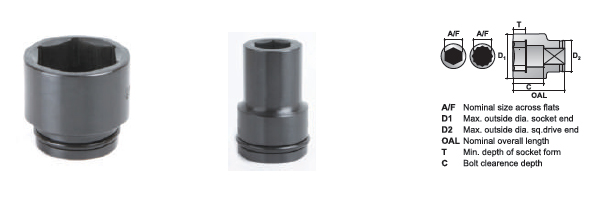

1" Metric Hexagon

A/F mm	MODEL NO.	D1 mm	D2 mm	T mm	C mm	OAL mm	Wt. Kg.
19 20 21	S-16M19 S-16M20 S-16M21	36.0 36.0 38.0	51.0 51.0 51.0	14.0 14.0 14.0	25.0 25.0 25.0	55.0 55.0 55.0	0.51 0.50 0.52
22 23 24	S-16M22 S-16M23 S-16M24	40.0 40.0 42.0	51.0 51.0 51.0	14.0 14.0 16.0	25.0 25.0 27.0	55.0 55.0 57.0	0.53 0.52 0.55
25 26 27	S-16M25 S-16M26 S-16M27	43.0 45.0 46.0	51.0 51.0 51.0	16.0 16.0 16.0	27.0 27.0 27.0	57.0 57.0 57.0	0.55 0.56 0.57
28 29 30	S-16M28 S-16M29 S-16M30	47.0 48.0 49.0	51.0 51.0 54.0	16.0 18.0 18.0	27.0 29.0 29.0	57.0 59.0 59.0	0.57 0.59 0.66
31 32 33	S-16M31 S-16M32 S-16M33	51.0 52.0 54.0	54.0 54.0 54.0	18.0 18.0 18.0	29.0 29.0 29.0	59.0 59.0 59.0	0.66 0.68 0.69
34 35 36	S-16M34 S-16M35 S-16M36	54.0 54.0 57.0	54.0 54.0 54.0	20.0 20.0 20.0	31.0 31.0 31.0	61.0 61.0 61.0	0.70 0.69 0.78
37 38 39	S-16M37 S-16M38 S-16M39	57.0 59.0 60.0	54.0 54.0 54.0	20.0 22.0 22.0	31.0 34.0 34.0	61.0 64.0 64.0	0.76 0.84 0.88
40 41 42	S-16M40 S-16M41 S-16M42	62.0 62.0 64.0	54.0 54.0 54.0	22.0 22.0 24.0	34.0 34.0 36.0	64.0 64.0 66.0	0.85 0.90 0.97
43 44 45	S-16M43 S-16M44 S-16M45	65.0 66.0 68.0	54.0 54.0 54.0	24.0 24.0 24.0	36.0 36.0 36.0	66.0 66.0 66.0	0.98 0.98 1.03
46 47 48	S-16M46 S-16M47 S-16M48	68.0 71.0 71.0	54.0 54.0 54.0	26.0 26.0 26.0	38.0 38.0 38.0	68.0 68.0 68.0	1.02 1.12 1.08
49 50 51	S-16M49 S-16M50 S-16M51	74.0 74.0 77.0	54.0 54.0 62.0	28.0 28.0 28.0	40.0 40.0 40.0	70.0 70.0 70.0	1.17 1.17 1.40
52 54 55	S-16M52 S-16M54 S-16M55	77.0 79.0 79.0	62.0 62.0 62.0	28.0 28.0 30.0	40.0 40.0 44.0	70.0 70.0 74.0	1.40 1.42 1.45
56 57 58	S-16M56 S-16M57 S-16M58	80.0 84.0 84.0	62.0 62.0 62.0	30.0 30.0 30.0	44.0 44.0 44.0	74.0 74.0 74.0	1.46 1.59 1.59
59 60 62	S-16M59 S-16M60 S-16M62	87.0 87.0 90.0	62.0 62.0 62.0	32.0 32.0 34.0	47.0 47.0 49.0	77.0 77.0 79.0	1.75 1.75 1.89
65 70 75	S-16M65 S-16M70 S-16M75	93.0 99.0 104.0	62.0 86.0 86.0	36.0 38.0 40.0	51.0 54.0 56.0	81.0 84.0 89.0	1.99 2.81 3.08
80 85 90	S-16M80 S-16M85 S-16M90	112.0 119.0 122.0	86.0 86.0 86.0	42.0 44.0 46.0	58.0 60.0 62.0	91.0 93.0 95.0	3.54 3.85 3.84
95 100 105	S-16M95 S-16M100 S-16M105	130.0 134.0 142.0	106.0 106.0 106.0	48.0 50.0 52.0	64.0 66.0 68.0	97.0 99.0 101.0	5.13 5.20 5.83
110 115	S-16M110 S-16M115	147.0 153.0	106.0 127.0	54.0 56.0	72.0 72.0	105.0 105.0	6.00 7.36
